Laser Scanning High-Definition Surveying


This offers many benefits to the measurement professional, but also to the recipients and users of accurate spatial information.

CAD Surveys combine GPS total station data with Leica/Faro scan data to create the most accurate and detailed package available. This is combined with 60 years of combined building knowledge across our team delivering an unrivalled service.

Call to find out more: 01233 635 089

Get a Quick Quote

Please provide us with all the information you have or, if you don’t have any details right now, just use the general enquiries form on our Contacts page and we will be in touch with some questions.

    THE 5 STEPS OF LASER SCANNING

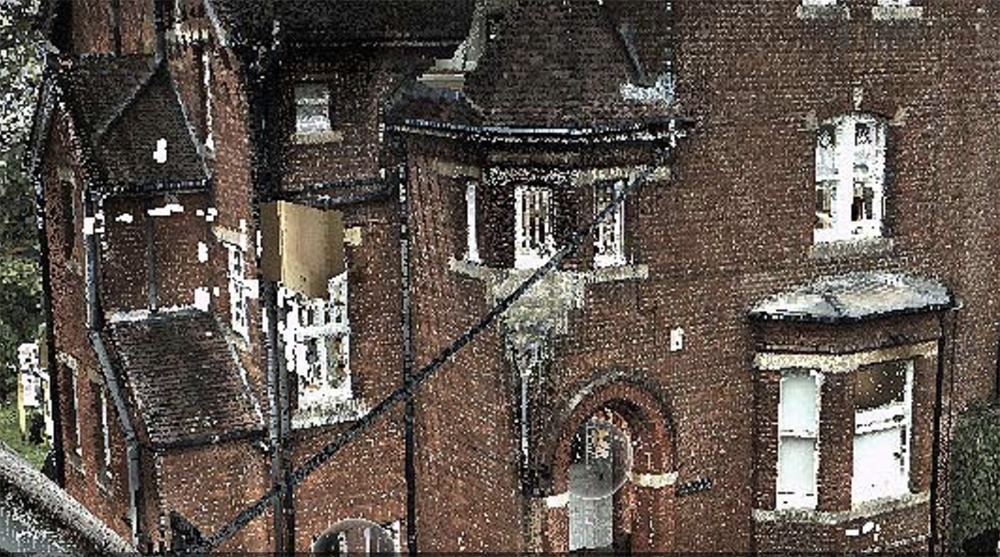

    RAW LEICA P40 DATA

    Raw data for the Leica P40 using ‘Cyclone’ software.

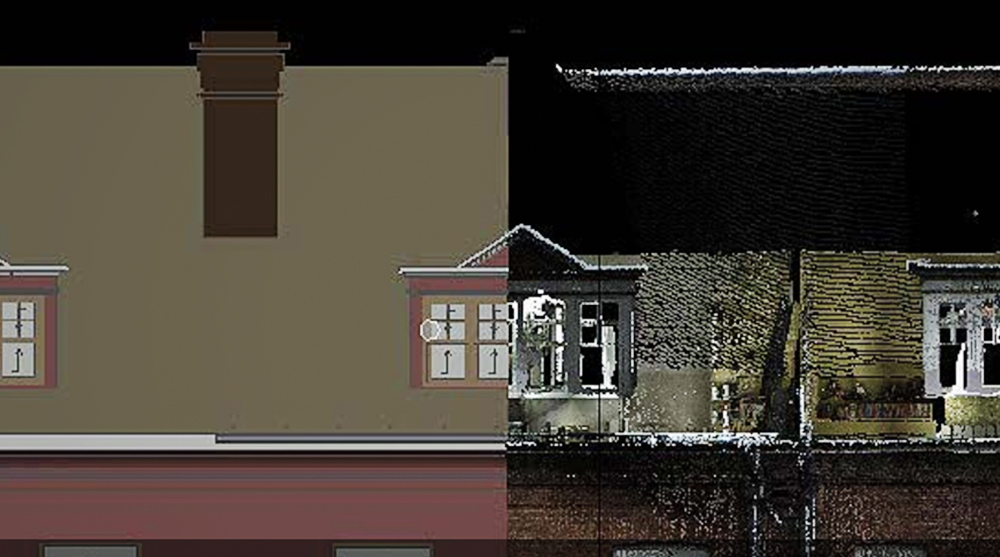

    3D MODELLING

    3D modelling in the early design stages.

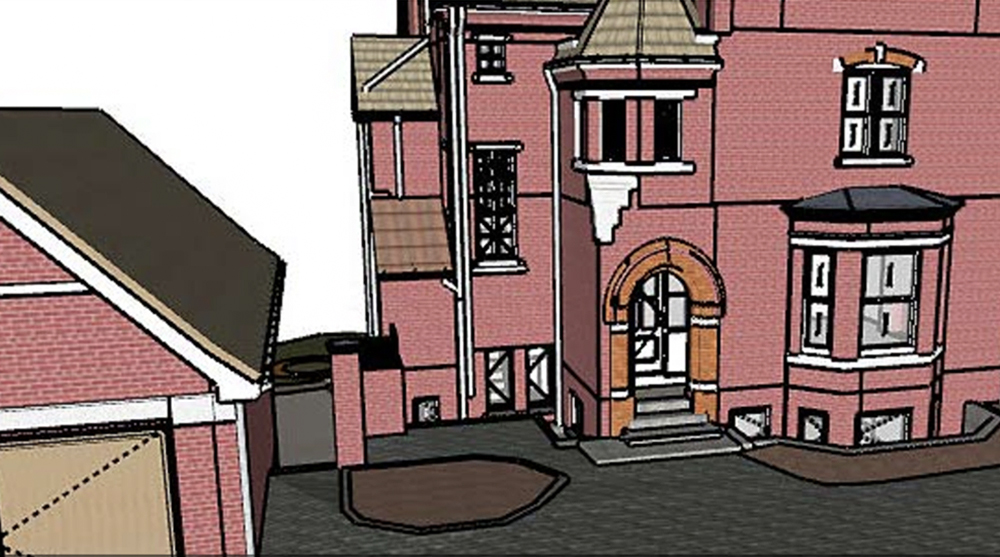

    SKETCHUP VISUAL

    Visual of the 3D model using ‘SketchUp’ software.

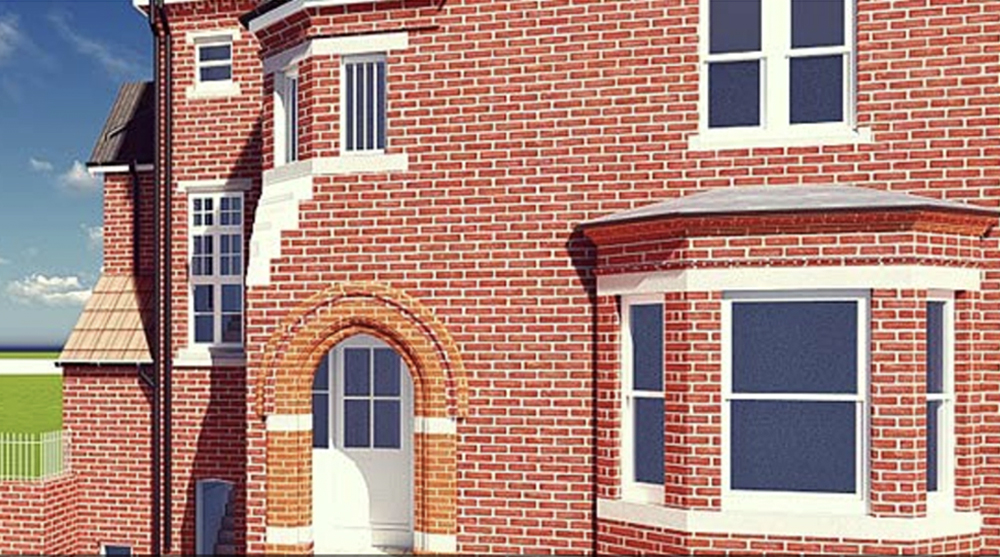

    RENDERED 3D MODEL

    Final, fully rendered, detailed 3D model.

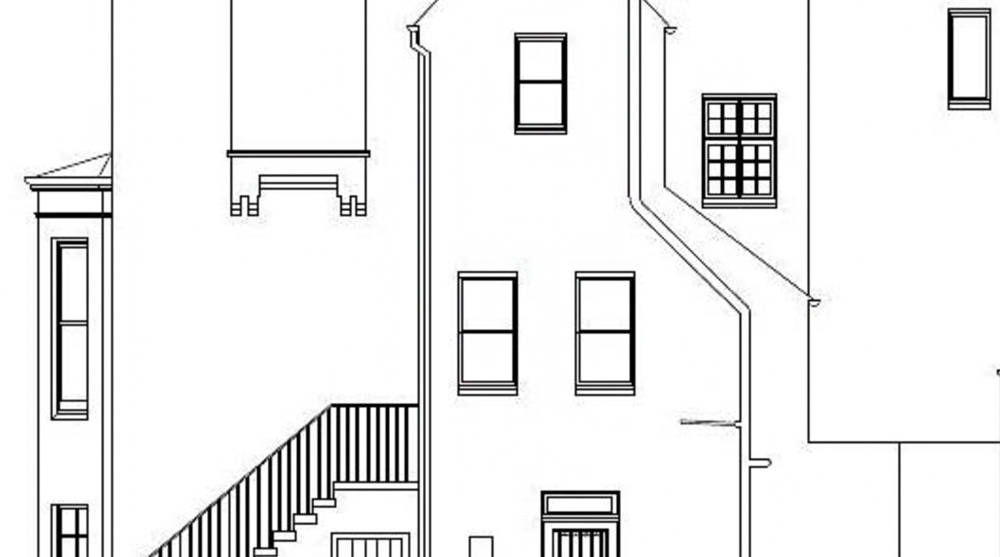

    CAD PLANS

    Traditional plans also produced from the same data.

    Recap Walkthrough

    CAD Surveys utilises the camera capabilities on-board the Leica scanner to mesh the survey data results into a walkthrough, viewable using AutoCAD Recap.

    Recap is a fantastic tool visually for reviewing the site data. Basic measurements can be taken to accompany the main CAD data and drawings that have been produced. The whole package enables the designers and architects to fully understand the building.
